ACETABULAR CUPS

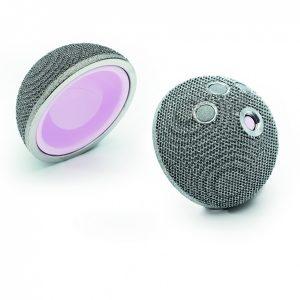

The LimaCorporate DELTA TT is a hemispherical cementless acetabular cup manufactured in Trabecular Titanium through the process of additive manufacturing. Breaking new ground in orthopedic technology, it combines the unique features of the DELTA System with the Trabecular Titanium structure.

Product Brochures:

  1. DELTA-TT Brochure
  2. TT Material
  3. Delta Primary Surgical Technique

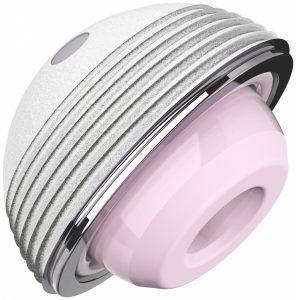

The LimaCorporate DELTA PF cup is a hemispherical cup made from titanium alloy to treat primary acetabular cases. The primary stability is supported by retentive grooves, a PoroTi and hydroxyapatite coating and the hemispherical cup design.

LimaCorporate’s DELTA PF cup represents the gold standard for primary hip replacement.

The LimaCorporate DELTA PF cup is available in sizes from 44 mm to 66 mm diameter in 2 mm increments. The DELTA PF is a modular and versatile cup: as part of the DELTA system, it allows a wide range of combinations and bearing options to provide a solution for any patient, both in primary and in basic revision surgery. Bearing options for the DELTA PF include Ceramic, X-Linked (X-LIMA) Poly, Vitamin-E enriched (LimaVit) Poly and Dual Mobility liners. All poly liners are available in both standard and protruded options. DELTA cups feature unique polar peg on all the liners to ensure correct alignment upon insertion into the shell. This helps avoid cross-locking that can lead to rim chipping and early failure of liners.

Product Brochure:
1. Delta Primary Surgical Technique

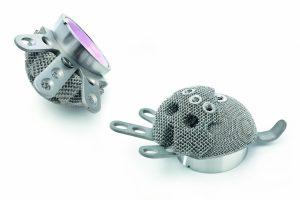

The LimaCorporate DELTA Revision TT System matches the innovative structure of TT Trabecular Titanium with the modularity of the DELTA acetabular cup system. It provides efficient solutions for revision treatments in case of cavitary and segmental bone deficiencies.

Product Brochure:

  1. Revision system Broshure
  2. Revision Cup Surgical Technique

REVISION STEM


The LimaCorporate Revision Stem provides reliable distal fixation, with the stem giving diaphyseal fit, and the fins anchoring into the cortex for rotational stability. The modular necks offer the flexibility to match the patient’s biomechanics.
The revision stem provides reliable distal fixation, with the stem giving diaphyseal fit, and the fins anchoring into the cortex for rotational stability. The modular necks offer the flexibility to match the patient’s biomechanics.

  • uncemented stem, Ti6AI4V
  • Ø14 to 26mm, 1mm increments
  • Length 140mm, 200mm
  • 4° taper offset

PRIMARY STEM

The LimaCorporate H-MAX builds on a trusted design with extra features and an optimised coating for enhanced biological fixation and natural offset distribution.
H-MAX-S HA coated primary hip stem, uncemented
Ti6AI4V + HA
Sizes 8 to 18


The LimaCorporate H-MAX builds on a trusted design with extra features and an optimised coating for enhanced biological fixation and natural offset distribution.
H-MAX-C highly polished cemented stem FeCrNiMnMoNbN
Sizes 9 to 18
Std offset 134 degrees

PALACOS®

The PALACOS® product portfolio comprises an extensive range of high-quality bone cements to ensure utmost flexibility:

  • Different viscosities: high, medium and low
  • Available with and without gentamicin added
  • As a particularly fast-setting bone cement
  • As All-in-One Fixation SystemTM
